How to Import Trips from MAS in RoutingBox Web

Using the Trip Importer, RoutingBox allows you to import a large quantity of trips all at once. MAS provides a direct link via the API key, this can can be uploaded into RoutingBox via the Importer.

To begin, hover over the left side menu and expand Scheduling and select Import Trips

Open Import Trips

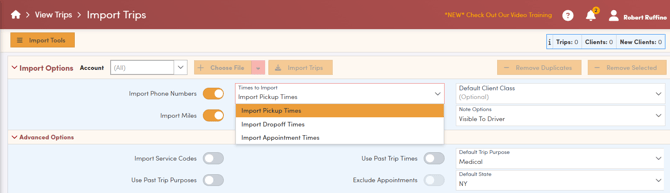

Before importing, you can expand the options sections to make decisions about what data gets imported with the file

Select Options

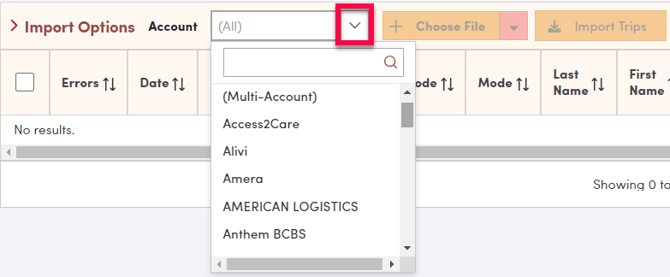

Next, select the account you are importing to using the Account dropdown.  If the file contains trips that are to be split up amongst multiple accounts, you can choose the "(Multi-Account)" option.

Choose Account

Then click the red arrow next to "Choose File"



Click on the MAS Direct Connection to import possible trips.

A new window will pop up requesting the date. Click on the calendar icon to select the date you would like to import from. Once a date is chosen, select the Load Trips to populate trips.

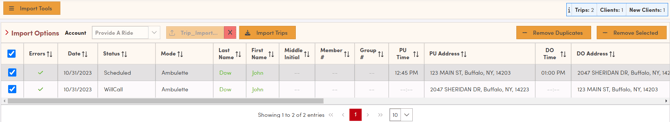

Your trips should now display in the grid below.  RoutingBox will precheck the trip information to see if the trip has any invalid or missing information.  If there are any errors, they will be displayed in the Errors column, otherwise you will see a green check if no issues are found.

Importer Grid

If the client name is green that means it is a new client for RoutingBox and a Client Profile will be created when the trip is imported.

If there are any errors, or if you see something you want to change, each cell in this grid is editable if you click in it.  For example, if you click in the PU address cell it expands for editing.

Edit Trips

After fixing any errors that needed fixing, you can check the box next to the trip to select it and then click Import Trips

It's advisable that before you Import trips you first click "Remove Duplicates".  This will check for trips that have already been imported into RoutingBox on previous imports and then it will remove those trips from the grid.

This helps to clean up the data you need to review.  However, it's okay if you do not remove duplicates first as RoutingBox will not create a duplicate trip if you attempt to import one, you'll just see errors in the import screen after attempting the import.

At this stage you may receive an error pop-up if any issues were found with importing the trips (read the details of the error to determine next steps) or you'll get a confirmation that the trips imported!

Trips Imported

And that's it! Your trips should now be imported.
