MAS Direct Connection for RoutingBox Web

RoutingBox allows you to import trips directly from MAS without going to the MAS website or typing in a password. Using an API connection, data can be sent to and received from MAS.

In RoutingBox Web:

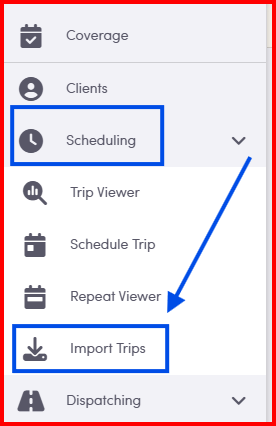

Navigate to the Scheduling tab, then select the Import Trips.

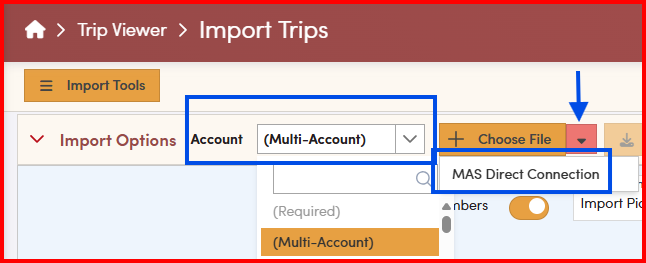

From the "Account to Import" dropdown, choose Multi-Account, or the Account to Import.

Click on the little drop-down arrow to the right of the + Choose Import button and  Select

MAS Direct Connection from the dropdown.

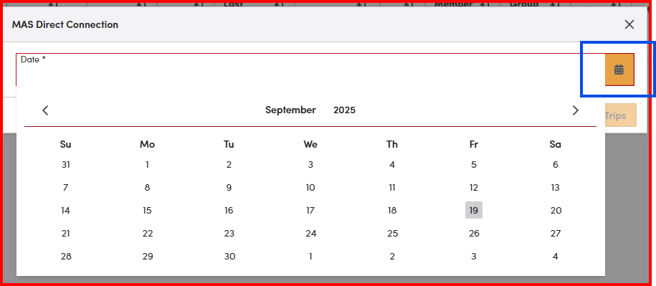

Choose the date of service to download.

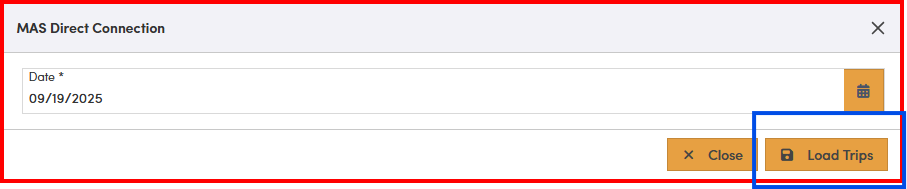

Press Load Trips after you have made your selections.

Review the trips in the importer grid. If necessary, changes to trip information can be made here before importing. (Communicate with your broker to understand what trip changes are permitted)

Using the Check Box Selections will allow to view and select which Rows of trips you want to address - All Rows, Rows without Errors, Rows with Errors, Updates.

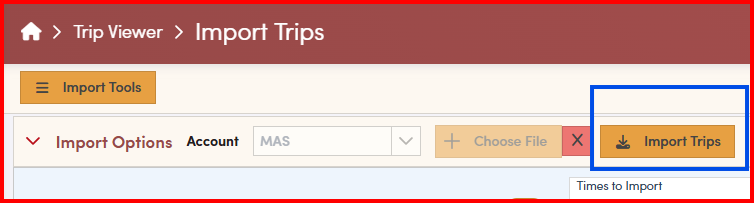

RoutingBox will review the selection and, if validated, activate the Import Trips button above.

Select Import Trips. Any trips without errors will import into RoutingBox.
